구조물 설계 시 볼트 선정을 위해 VDI2230 수식 기반으로 계산하는 프로그램이다. 해석 결과로 볼트의 강도 및 지름 선정, 축력, 피로 강도 등을 제공받을 수 있으며 User의 상황에 맞게 온도, 클램프 크기, 하중 형태를 선택하여 자세한 결과를 도출할 수 있다.
It is a program that calculates based on the VDI2230 equation for selecting bolts when designing a structure.

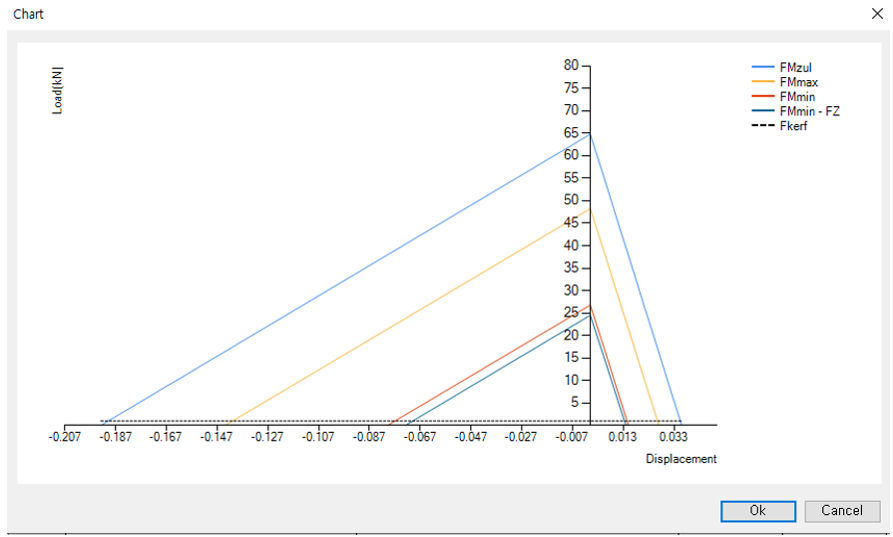

result of the analysis, the strength and diameter of the bolt can be selected, axial force, fatigue strength, etc. can be provided, and detailed results can be derived by selecting the temperature, clamp size, and load type according to the user's situation.
구조물 설계 시 볼트 선정을 위해 VDI2230 수식 기반으로 계산하는 프로그램이다. 해석 결과로 볼트의 강도 및 지름 선정, 축력, 피로 강도 등을 제공받을 수 있으며 User의 상황에 맞게 온도, 클램프 크기, 하중 형태를 선택하여 자세한 결과를 도출할 수 있다.
It is a program that calculates based on the VDI2230 equation for selecting bolts when designing a structure.
result of the analysis, the strength and diameter of the bolt can be selected, axial force, fatigue strength, etc. can be provided, and detailed results can be derived by selecting the temperature, clamp size, and load type according to the user's situation.
기능- 동심 및 편심에 따른 데이터베이스 제공

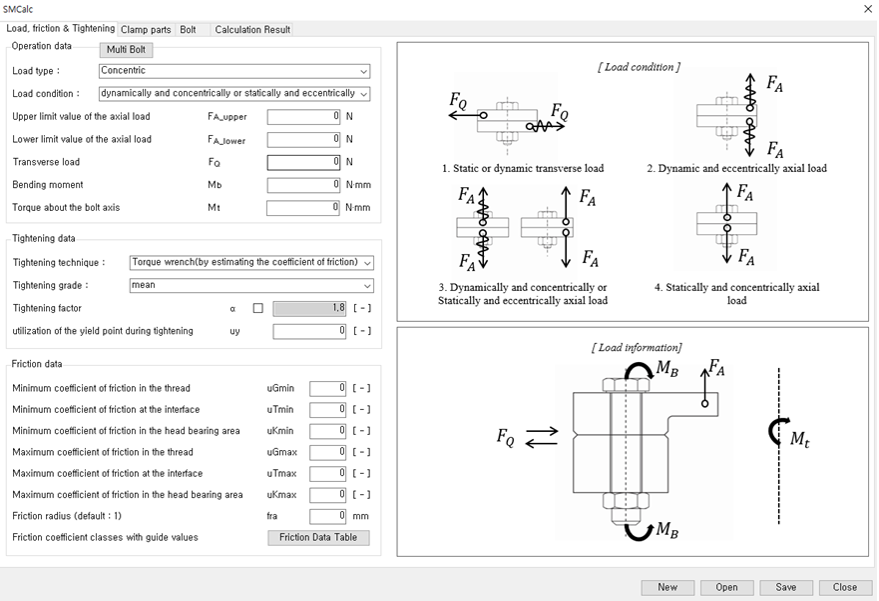

- 하중 형태 선택 가능

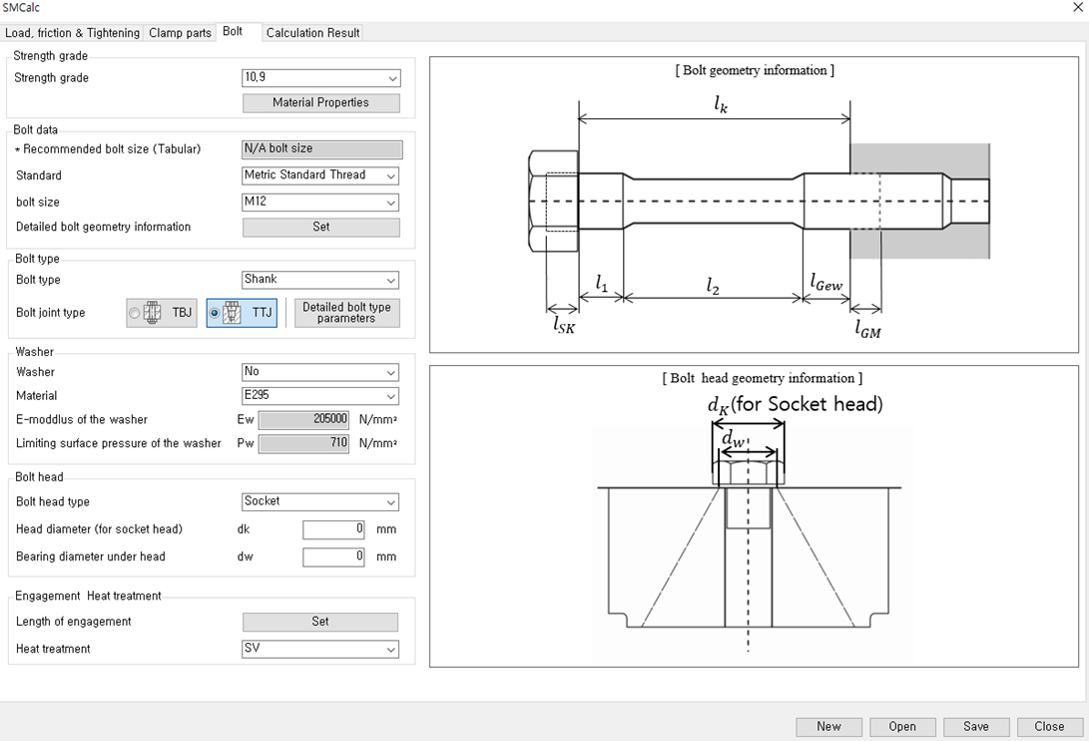

- 볼트 타입, 강도 및 크기 제공

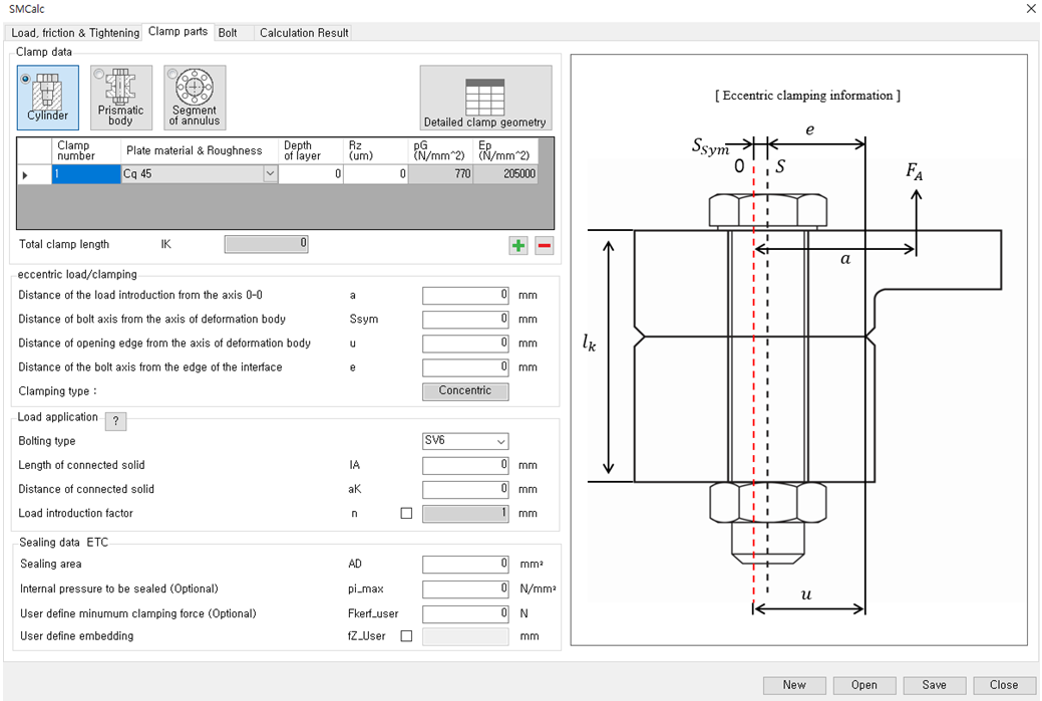

- 클램프 형상 선택 가능
- Standard & thread의 볼트 데이터베이스 제공
- Washer 데이터베이스 제공
- VDI 2230 기반 안전율 계산
